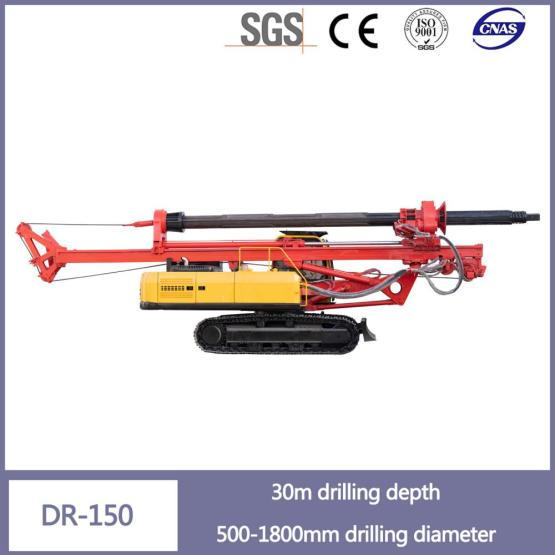

Mini Water Drilling Machine with Factory Direct Sale
Model No.: DR-150
Usage: Water Well
Power Type: Diesel
Type: Rotary Drilling Rig
Maximum Torque Of Power Head.(KN.m): 150
Drilling Diameter.(mm): 500-1800
Productivity: 10 set/month
Place of Origin: CHINA
Supply Ability: 10 set/month
HS Code: 8430509000
|Maximum drilling depth.(m)||30|
|Engine rated power.(KW/rpm)||151KW-176KW|
|Maximum torque of power head.(KN.m)||150|
|Power head speed.(rpm)||10-50|
|Maximum working pressure of hydraulic system main pump.(MPa)||30|
|Maximum working pressure of hydraulic system auxiliary pump.(MPa)||12|
|Maximum bow rate of the main pump hydraulic system.(L/min)||112*2（Optional)|
|Maximum bow rate of the auxiliary pump hydraulic system.(L/min)||16|
|Maximum pressure of the pressurization system.(KN)||100|
|Maximum lifting force of the pressurization system.(KN)||80|
|Maximum travel pressure system.(mm)||3000|
|Maximum lifting force of the main winch.(KN)||150|
|Maximum pull-up speed of the main winch. (m/min)||50|
|Maximum lifting force of the auxiliary winch.(KN)||15|
|Maximum pull-up speed of the auxiliary winch.(m/min)||50|
|Left and right inclination angle of drilling mast(°)||±5|
|Forward and backward inclination angle of the drilling mast. (°)||5/90|
|Maximum driving speed(KM/h)||1.5|
|Maximum climbing angle.(°)||25|
|Maximum Driving torque.(KN.m)||45000|
|Overall width of working state.(mm)||4200|
|Overall length of transport status.(mm)||13000|
|Overall width of transport status.(mm)||2800|
|Overall height of transport status.(mm)||3500|
|Drill rod type||Machine Lock|
|Drill rod whether to provide custom||Yes|
|drill tools||500-2000mm drilling bit、Drilling Barrel、Coring drill、Reaming drilling bit|
1.Q: Are you a manufacturer?
A: Yes, we are a professional rotary drilling rig manufacturer.
2.Q: What does your company produce?
A: The main products of our company include rotary drilling rig.
3.Q: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.
4.Q: What methods of payment do you accept?
A: We accept T/T, L/C.
5.Q: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
