Dingli manufactures portable rotary drilling rigs

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF
Min. Order:	1 Piece/Pieces
Delivery Time:	14-21 Days

Contact Now

Basic Info

Model No.: DF-15

Certification: SGS, CE, ISO 9001:2008

Condition: New

Drill Hole Diameter: >300mm

Drill Hole Depth: <30m

Bit Type: Other

Drilling Way: Rotary

Type: Crawler

Color: Customized

Additional Info

Packaging: container

Productivity: 10 set/month

Brand: Dingli

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10 units per month

Certificate: ISO CQC CE SGS

HS Code: 8430509000

Port: Qingdao,Shanghai,Tianjin

Product Description

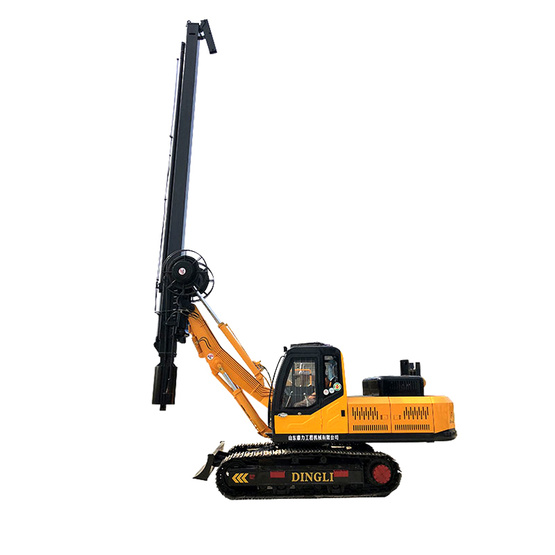

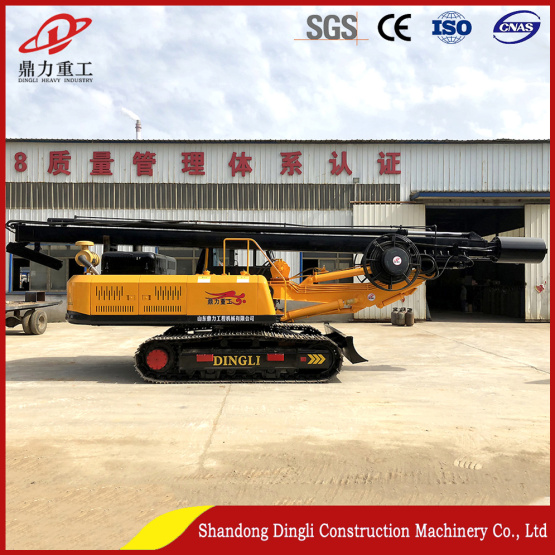

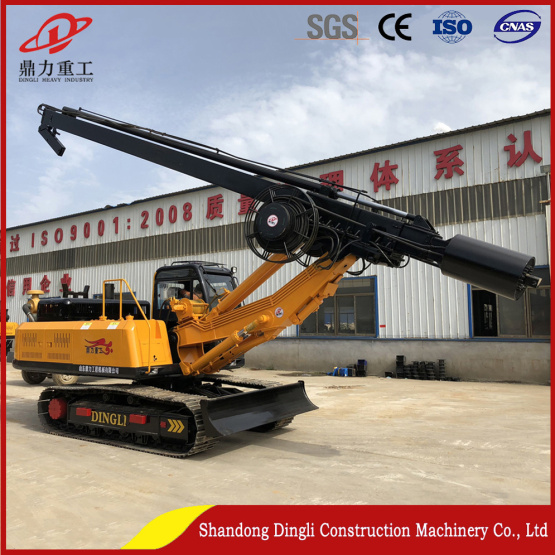

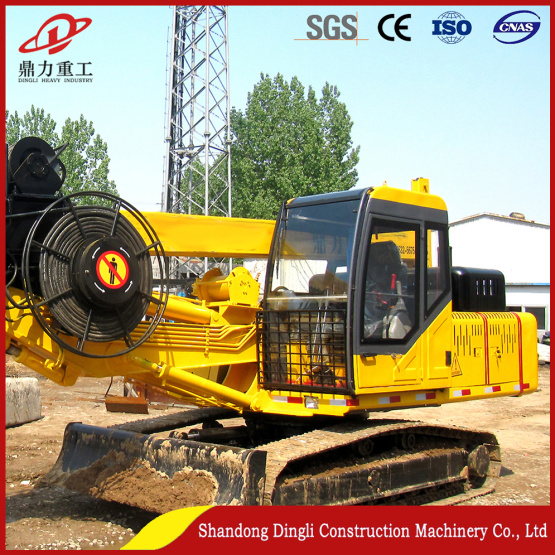

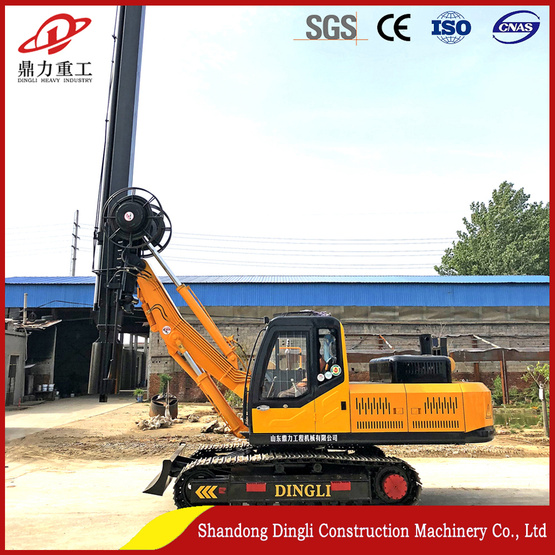

Dingli manufactures portable rotary drilling rigs DF-15 is the smallest model of the tracked civil engineering multi-functional drilling rig produced by our company. The maximum drilling depth is 15 meters. It can be used for pile foundation construction of construction projects and construction of digging wells under certain conditions. The ground does not exceed 15 meters. The drill type can be selected according to the ground construction environment. When drilling on hard roads, the auger bit opening is used first, and then the barrel drill is used to dig the soil. During the drilling process, you can choose whether to release the protective tube according to the soil structure. To prevent the cavern from collapsing, thereby improving drilling efficiency and construction safety, the hoisting of related drilling tools can be completed by an auxiliary hoist. This model has CE / SGS / ISO and other product quality certifications. For more information, you are welcome to consult and visit.

Product Type	DF-15
Chassis length.(mm)	3500
Track width.(mm)	400-450
Machine weight.(t)	13-16
Maximum drilling depth.(m)	15
drilling diameter.(mm)	500-1500
Engine brand	Yuchai/Weichai/Cummins（Optional）
Engine rated power.(KW/rpm)	85KW-151KW
Maximum torque of power head.(N.m)	24000-30000
Power head speed.(rpm)	10-30
Power head whether to provide custom	Yes
Maximum working pressure of hydraulic system main pump.(MPa)	20-25
Maximum working pressure of hydraulic system auxiliary pump.(MPa)	12
Maximum bow rate of the main pump hydraulic systen(L/min)	50*2（Optional）
Maximum bow rate of the auxiliary pump hydraulic systen.(L/min)	16
Maximum pressure of the pressurization system.(KN)	100
Maximum lifting force of the pressurization system.(KN)	100
Maximum travel pressure system.(m)	15
Maximum lifting force of the main winch.(KN)	80
Maximum pull-up speed of the main winch. (m/min)	80
Maximum lifting force of the auxiliary winch.(KN)	15
Maximum pull-up speed of the auxiliary winch.(m/min)	50
Maximum lifting power of the auxiliary winch.(t)	1.5
Left and right inclination angle of drilling mast(°)	±5
Forward inclination angle of drilling mast.(°)	4
Maximum driving speed(KM/h)	2
Maximum climbing angle.(°)	25
Overall width of working state.(mm)	2300
Overall length of transport status.(mm)	10200
Overall width of transport status.(mm)	2300
Overall height of transport status.(mm)	2900
Drill rod type	Square rod, pressurized type
Drill rod whether to provide custom	Yes
drill tools	500-1500mm drilling bit、Drlling Barrel、Coring drill、Reaming drilling bit
drill tools
drill tools whether to provide custom	Yes
