Dingli manufactures crawler augers drill rig

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 14-21 Days

Basic Info


Model No.: DR-90

Type: Drill

Pressure Pile Driver Type: Hydraulic Pile Driver

Power Source: Diesel

Certification: SGS, CE, ISO 9001:2008

Condition: New

Color: Customized


Additional Info


Productivity: 10 set/month

Brand: Dingli

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10 units per month

Certificate: ISO CQC CE SGS

HS Code: 8430509000

Port: Qingdao,Shanghai,Tianjin


Product Description

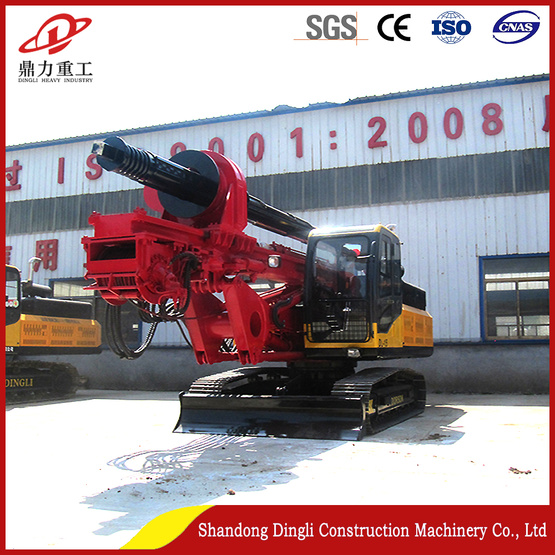

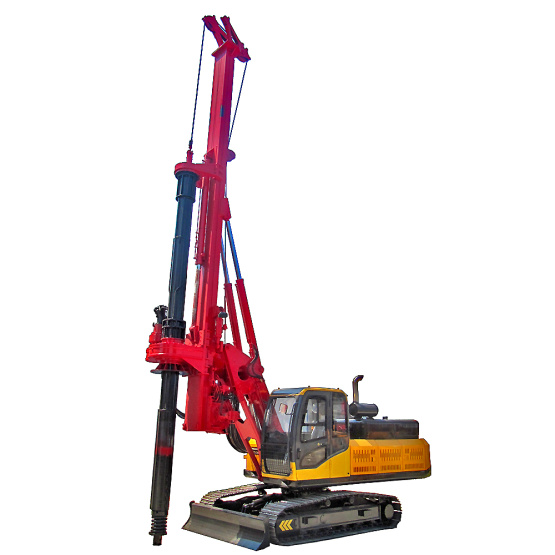

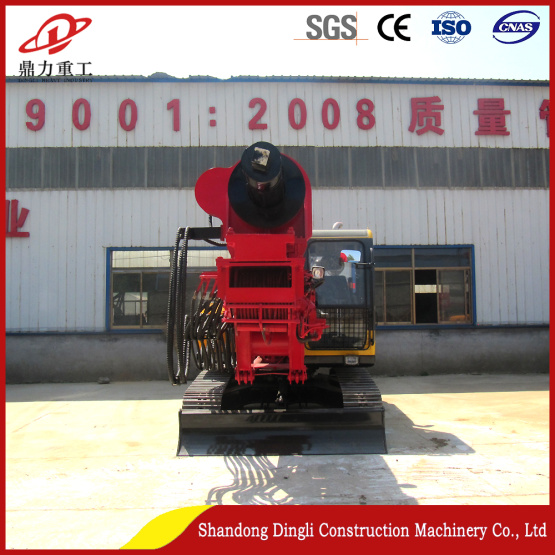

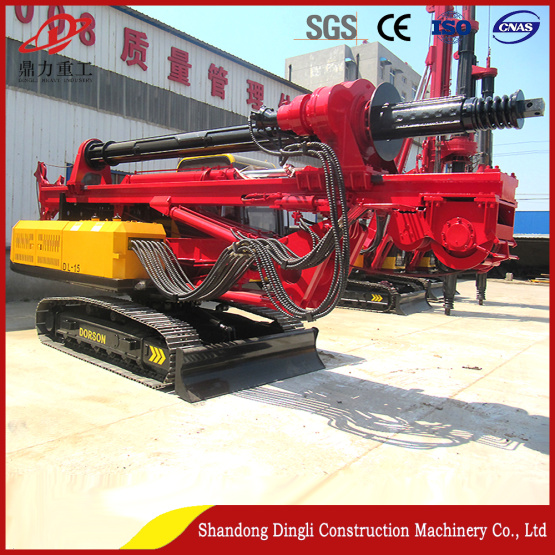

Dingli manufactures  crawler augers drill rig DR-90The overall structure of the drilling rig is compact and compact, and it is mostly used for small-scale engineering construction. The maximum drilling depth of the drilling rig is 15M. The drilling diameter is 450-1500MM. It can be used with a variety of drills for construction operations. It is suitable for sand and clay drilling and excavation.


Hydraulic Diesel Piling Drill Machine

Product Type DR-90
Chassis length.(mm) 3400
Track width.(mm) 500
Machine weight.(t) 15-19
Maximum drilling depth.(m) 15
drilling diameter.(mm) 450-1500
Engine brand Yuchai/Weichai/Cummins(Optional)
Engine rated power.(KW/rpm) 110KW
Maximum torque of power head.(KN.m) 90
Power head speed.(rpm) 10-40
Maximum working pressure of hydraulic system main pump.(MPa) 30
Maximum working pressure of hydraulic system auxiliary pump.(MPa) 12
Maximum bow rate of the main pump hydraulic system.(L/min) 63*2(Optional)
Maximum bow rate of the auxiliary pump hydraulic system.(L/min) 16
Maximum pressure of the pressurization system.(KN) 100
Maximum lifting force of the pressurization system.(KN) 80
Maximum travel pressure system.(mm) 2000
Maximum lifting force of the main winch.(KN) 120
Maximum pull-up speed of the main winch. (m/min) 50
Maximum lifting force of the auxiliary winch.(KN) 15
Maximum pull-up speed of the auxiliary winch.(m/min) 50
Left and right inclination angle of drilling mast(°) ±5
Forward and backward inclination angle of the drilling mast. (°) 5/90
Maximum driving speed(KM/h) 1.5
Maximum climbing angle.(°) 25
Maximum Driving torque.(KN.m) 17000-40000
Overall width of working state.(mm) 2400
Overall length of transport status.(mm) 9500
Overall width of transport status.(mm) 2400
Overall height of transport status.(mm) 3250
Drill rod type Machine Lock
Drill rod whether to provide custom Yes
drill tools 500-1500mm drilling bit、Drilling Barrel、Coring drill、Reaming drilling bit
