150 kW torque rotary drilling rig

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 14-21 Days

Basic Info


Model No.: DR-150

Certification: SGS, CE, ISO 9001:2008

Condition: New

Motor: DC Motor

Drill Hole Diameter: >300mm

Drill Hole Depth: <100m

Bit Type: Other

Drilling Way: Rotary

Color: Customized


Additional Info


Packaging: container

Productivity: 10 set/month

Brand: Dingli

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10 units per month

Certificate: ISO CQC CE SGS

HS Code: 8430509000

Port: Qingdao,Tianjin,Shanghai


Product Description

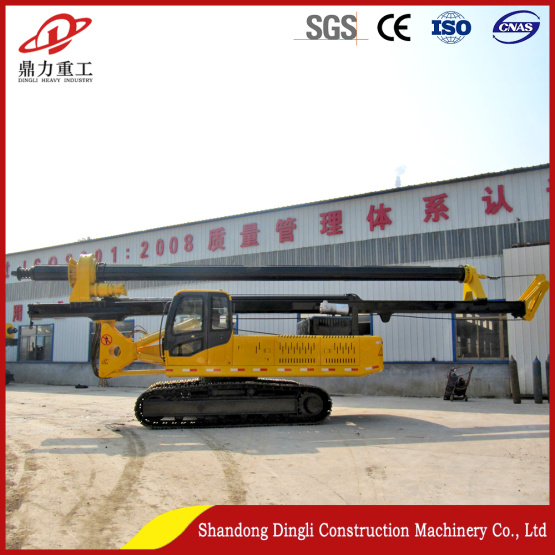

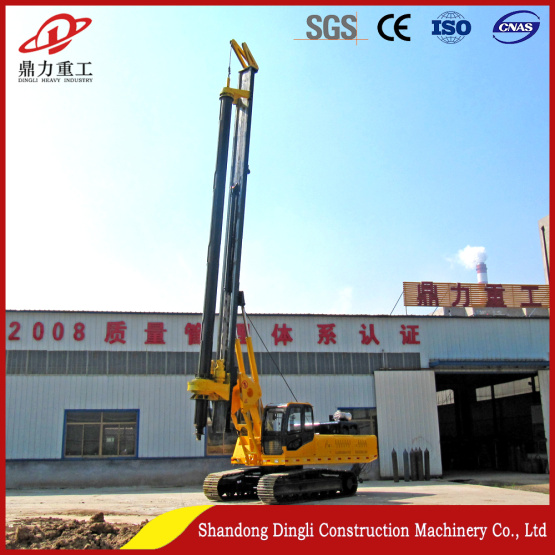

150 kW torque rotary drilling rig DR-150 This model is a general-purpose ground engineering drilling machine, suitable for comprehensive civil engineering construction, such as road and bridge construction, subway tunnel construction, dam water conservancy construction, airport port construction, energy and mineral engineering construction and so on. The maximum drilling depth of the drilling rig is 30M, and the drilling diameter is 500-1600MM.




Hydraulic Mobile Oil Drilling Rig

Product Type DR-150
Chassis length.(mm) 4200
Track width.(mm) 600
Machine weight.(t) 30
Maximum drilling depth.(m) 30
drilling diameter.(mm) 500-1800
Engine brand Yuchai/Weichai/Cummins(Optional)
Engine rated power.(KW/rpm) 151KW-176KW
Maximum torque of power head.(KN.m) 150
Power head speed.(rpm) 10-50
Maximum working pressure of hydraulic system main pump.(MPa) 30
Maximum working pressure of hydraulic system auxiliary pump.(MPa) 12
Maximum bow rate of the main pump hydraulic system.(L/min) 112*2(Optional)
Maximum bow rate of the auxiliary pump hydraulic system.(L/min) 16
Maximum pressure of the pressurization system.(KN) 100
Maximum lifting force of the pressurization system.(KN) 80
Maximum travel pressure system.(mm) 3000
Maximum lifting force of the main winch.(KN) 150
Maximum pull-up speed of the main winch. (m/min) 50
Maximum lifting force of the auxiliary winch.(KN) 15
Maximum pull-up speed of the auxiliary winch.(m/min) 50
Left and right inclination angle of drilling mast(°) ±5
Forward and backward inclination angle of the drilling mast. (°) 5/90
Maximum driving speed(KM/h) 1.5
Maximum climbing angle.(°) 25
Maximum Driving torque.(KN.m) 45000
Overall width of working state.(mm) 4200
Overall length of transport status.(mm) 13000
Overall width of transport status.(mm) 2800
Overall height of transport status.(mm) 3500
Drill rod type Machine Lock
Drill rod whether to provide custom Yes
drill tools 500-2000mm drilling bit、Drilling Barrel、Coring drill、Reaming drilling bit
